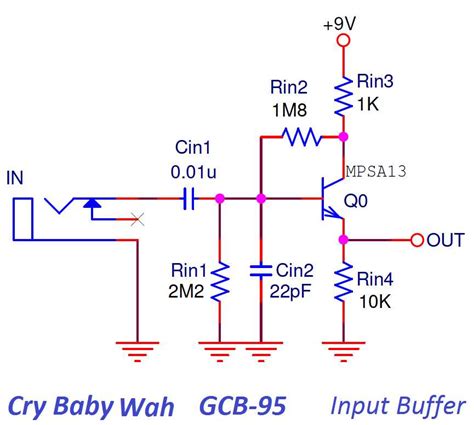

Guitar Pedal Buffer Schematic

Guitar Pedal Buffer Schematic. As this is a standard buffer with no extra features, we only have three holes to drill. The enclosure options are almost.

RIFFMAN Guitar Effects Pedal Projects BUFFER
RIFFMAN Guitar Effects Pedal Projects BUFFER from riffmanfx.blogspot.com

Drag control provides a variable load on your magnetic pickups to replicate the sound as if you were connected directly to a tube amp. One for the input jack, one for the output jack and one for the power jack. Web here’s how it works:

Be Sure To Subscribe For More And Give Me A Thumbs.


Web bjt buffers will generally have a lower output impedance than a jfet alternative but also a lower input impedance. Split into 2, 3 or 4 outputs. Web jfet buffer bill of materials;

Web What Does A Buffer Do?


Think of a single buffer as a 1:1 amplifier that changes the impedance (sensitivity) of your. Web amz is a resource with information about diy guitar effects pedals, stompboxes, audio circuits and tips on how to build them. A buffer pedal is an active (powered) circuit that will preserve the frequencies from your guitar, mainly the higher frequencies, and maintain the strength of the signal as it progresses through your signal chain.

Web Neat Little Circuit To Split Your Guitar Signal Without Any Signal Loss, Based On The Amz Splitter Buffer.


In practice buffer pedals are used to prevent high frequency ‘roll. The above diagram shows that only a handful of components are needed: Your “signal chain” is everything between your guitar and amplifier input, including cables.

As Your Signal Chain Gets More Complex (Adding More.


Web brighten up your tone with this simple buffer! A/b switch parts layout and wiring diagram; Web jfet buffer schematic c1 is called a coupling capacitor and is used to block the arbitrary dc part of the signal.

Indeed, Its Circuit Is Really Well Known, There Is A Lot Of Information Available All Around The.


Web a/b switch box schematic ; Web technically a buffer is a unity gain (0db) amplifier circuit with a high input impedance and low output impedance. Web i wired up the configuration + the smaller components on a prototyping board / perfboard which will lie within the pedal enclosure, along with a 9v battery.
