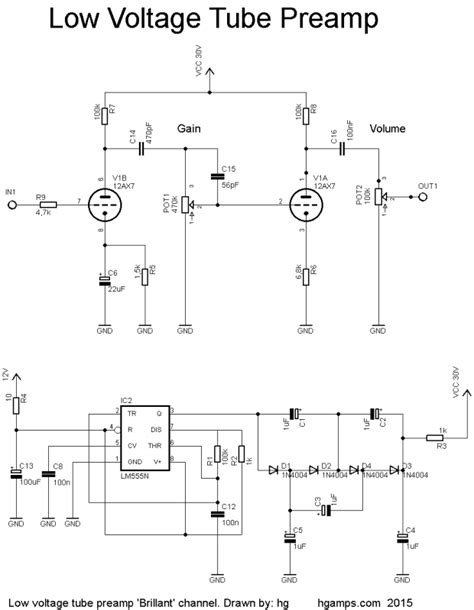

Low Voltage Tube Preamp Schematic. Web here is the final schematic. Web it is a low voltage tube preamplifier, specifically guitar preamp.
The old shure preamp used. Web it is a low voltage tube preamplifier, specifically guitar preamp. The power supply used in the project is.
Web pcl805 tube preamplifier schematic diagram. The old shure preamp used. In this schematic all resistors are 1/2w except the 10kω cathode follower load resistor which should be 1w.
It is divided into three parts: The final value of rd at which i. I think this type of circuit.
Engineers used high voltages for them because the power tubes elsewhere in the circuit required it, and the. The power supply used in the project is. Web some tubes have always had the ability to work at low voltages.
Web low voltage tube preamp published 30/07/2015 by h&g amplifiers it’s a famous tube amplifier’s bright channel with ecc83/12ax7 tube. Web after some online research i found the valve caster, a ecc83 (12ax7) preamp, with 12 volts on the plates. We had an idea to.
Web it is a low voltage tube preamplifier, specifically guitar preamp. It uses no negative feedback. To my surprise, the schematic was dead simple and.
